FlexRadio Maestro connects directly or through your local area network (LAN) to any Flex 6000 series transceiver for local or remote operation.

Maestro places the most frequently used controls directly at your fingertips. Controls are labeled for intuitive operation and designed to minimize hand motion for the most common radio operations. Occasionally used controls are easily accessible on the large touch screen display bypassing the complexity of multi-function buttons and multi-level menus found on most transceivers. Like modern phones and tablets, capacitive touch control is provided on the large LCD display for intuitive pan, zoom, tune, and menu operation. CW Paddles can also be plugged into the Maestro to work directly with your FLEX-6000 series radio.

If you’ve ever longed for the moment when you could monitor the bands or work DX from a lounge chair by the pool or from the comfort of your leather recliner — the time is now. Maestro’s small footprint and minimal wiring clean up your operating position and let you mount the radio virtually anywhere in the shack or around the house, Its sleek, lightweight design makes it not only the envy of your peers but also easy to carry or pack.

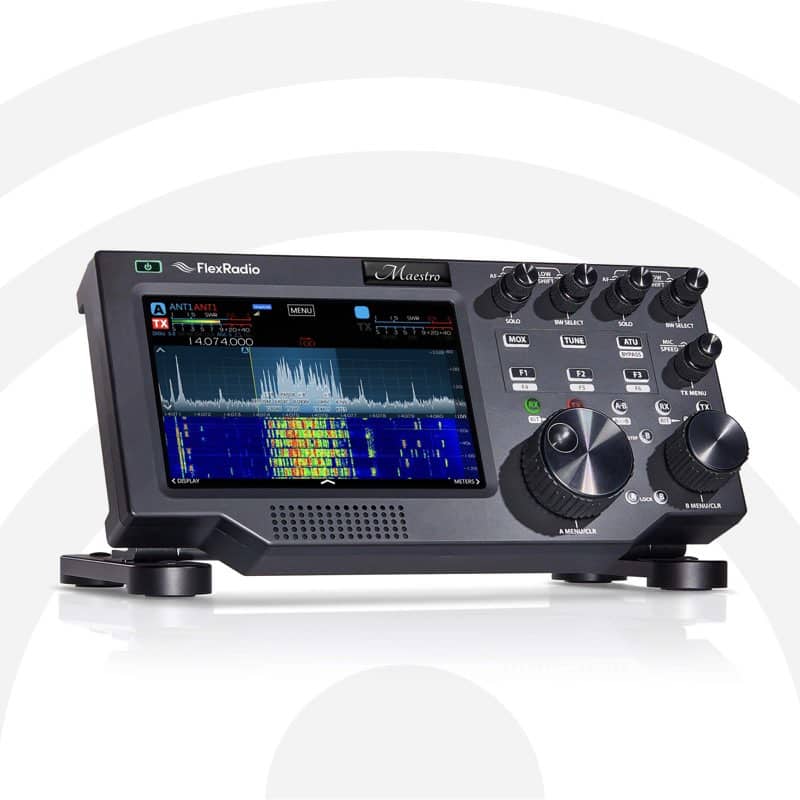

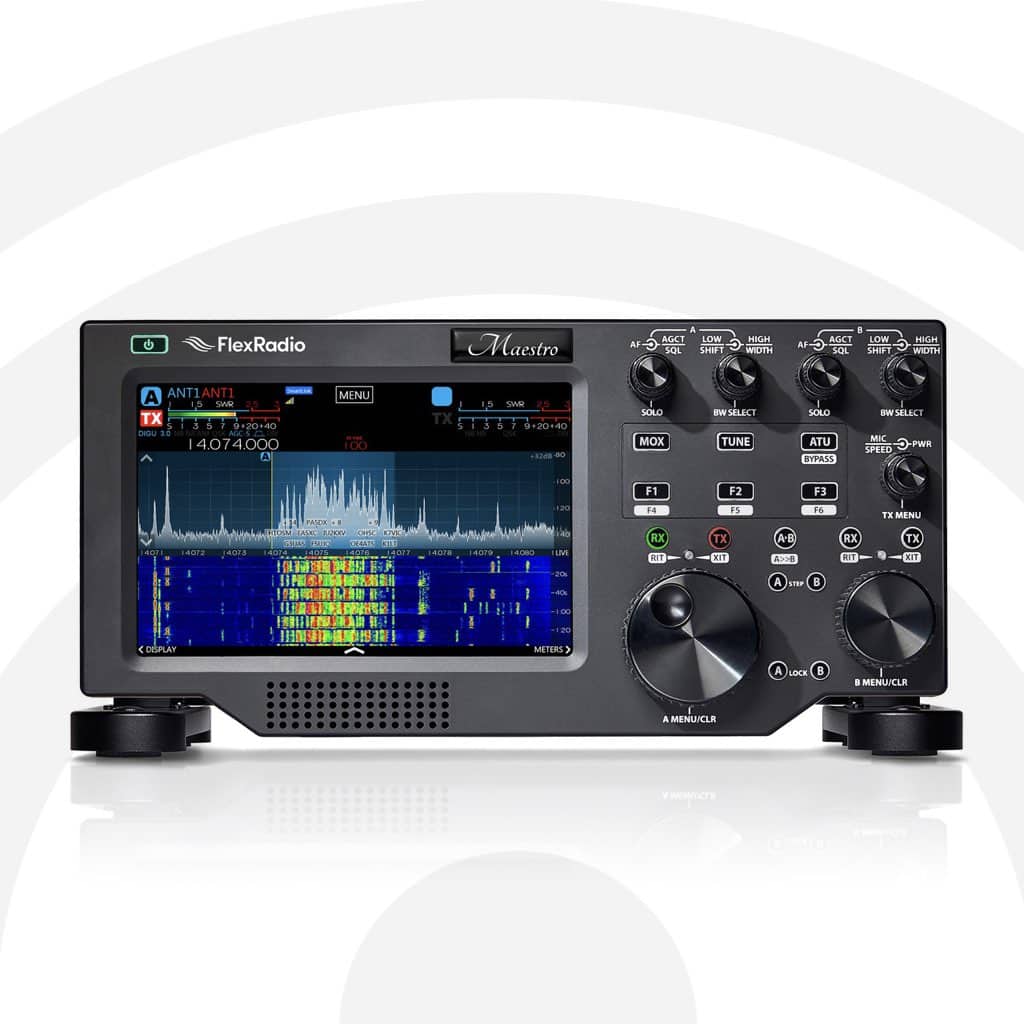

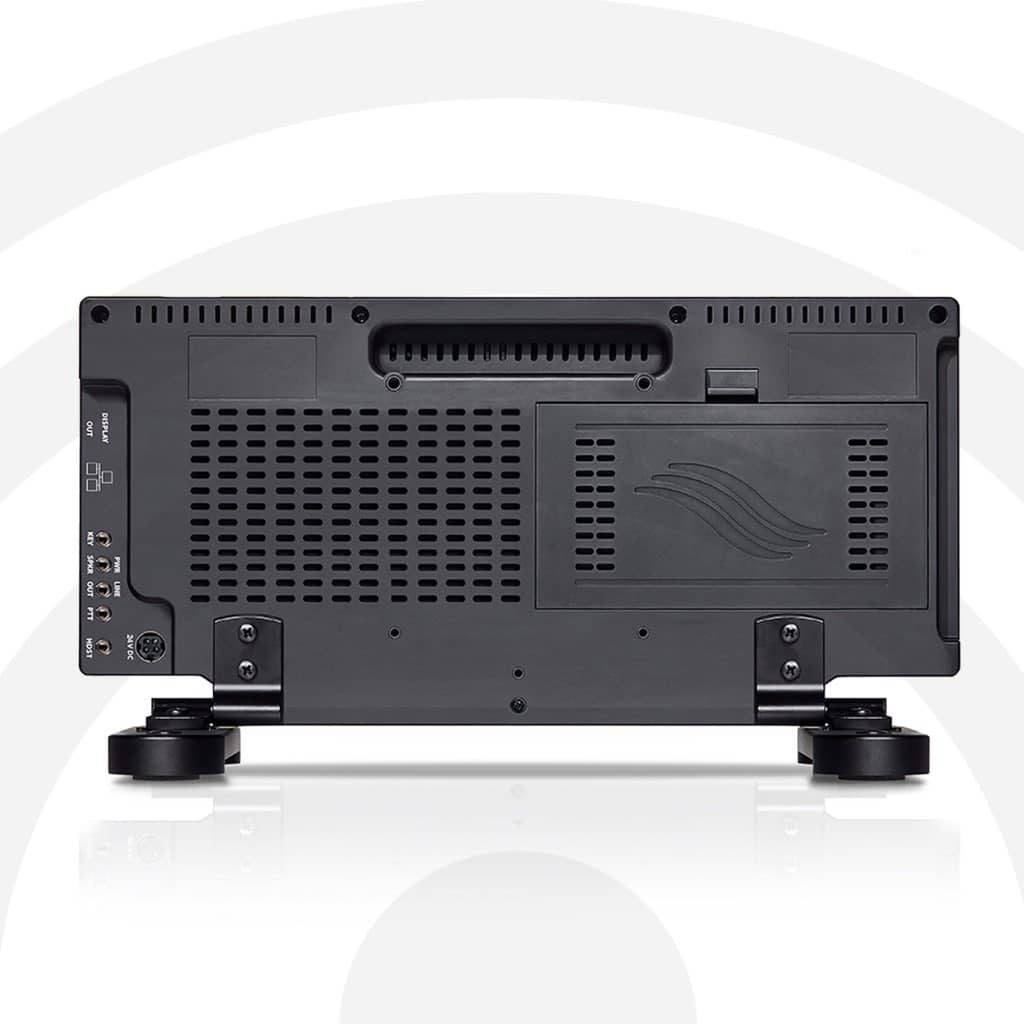

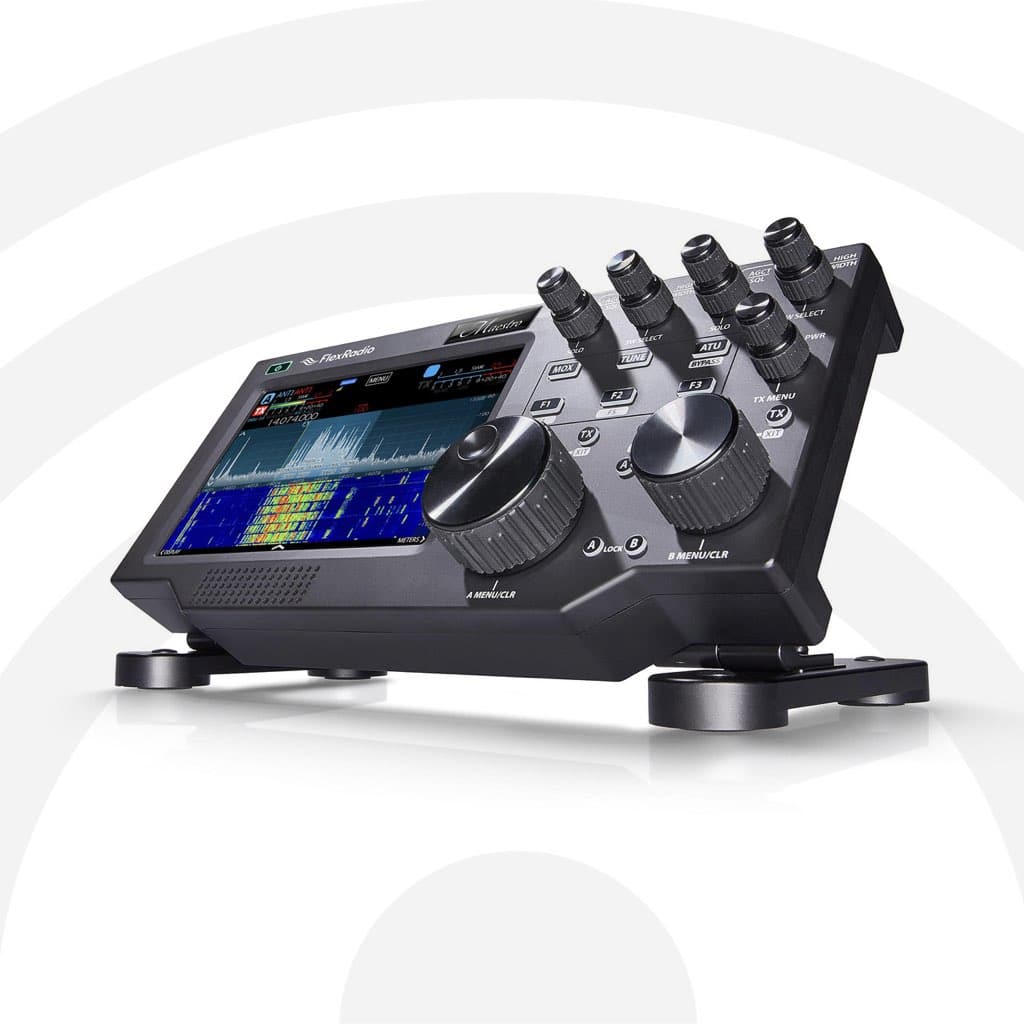

NOTE: Product photos shows FlexRadio Maestro new model C with optional tilt feet. C model is delivered with standard feet, has a redesigned back panel and a new power button. See all product photos for more information.

Flex Maestro Features

Radio in High Resolution

Never miss a QSO!

• 8” High Definition 1920 x 1200 WUXGA Display
• Multi-touch display
• High-Resolution Panadapter and Waterfall
• Up to two 7MHz spectrum displays
• Optimized workflow
• Large, Easy-to-read Text

Confusion Free Controls

Only the controls you need, only when you need them.

• Front  Panel Power Button
• Ergonomically spaced / single-function controls
• Intuitive Touch Screen Menus
• Illuminated Buttons
• Two full VFOs

Radio Anytime, Anywhere

With SmartLink remote, just turn it on and play radio from anywhere.

• Plug and Play Remote
• Built-in Wi-fi and Ethernet
• Truly Wireless Operation
• No complex setup required
• Operate anywhere, any time
• Across the country or across the world

Flex Maestro Specifications

Display/Touch Screen

• Up to 2 simultaneous, real-time spectrum displays and waterfalls
• Dual VFO Readouts
• Display Type: Large 8.0″ In Plane Switching (IPS) display with touch screen
• Display Resolution: WUXGA 1920 x 1200

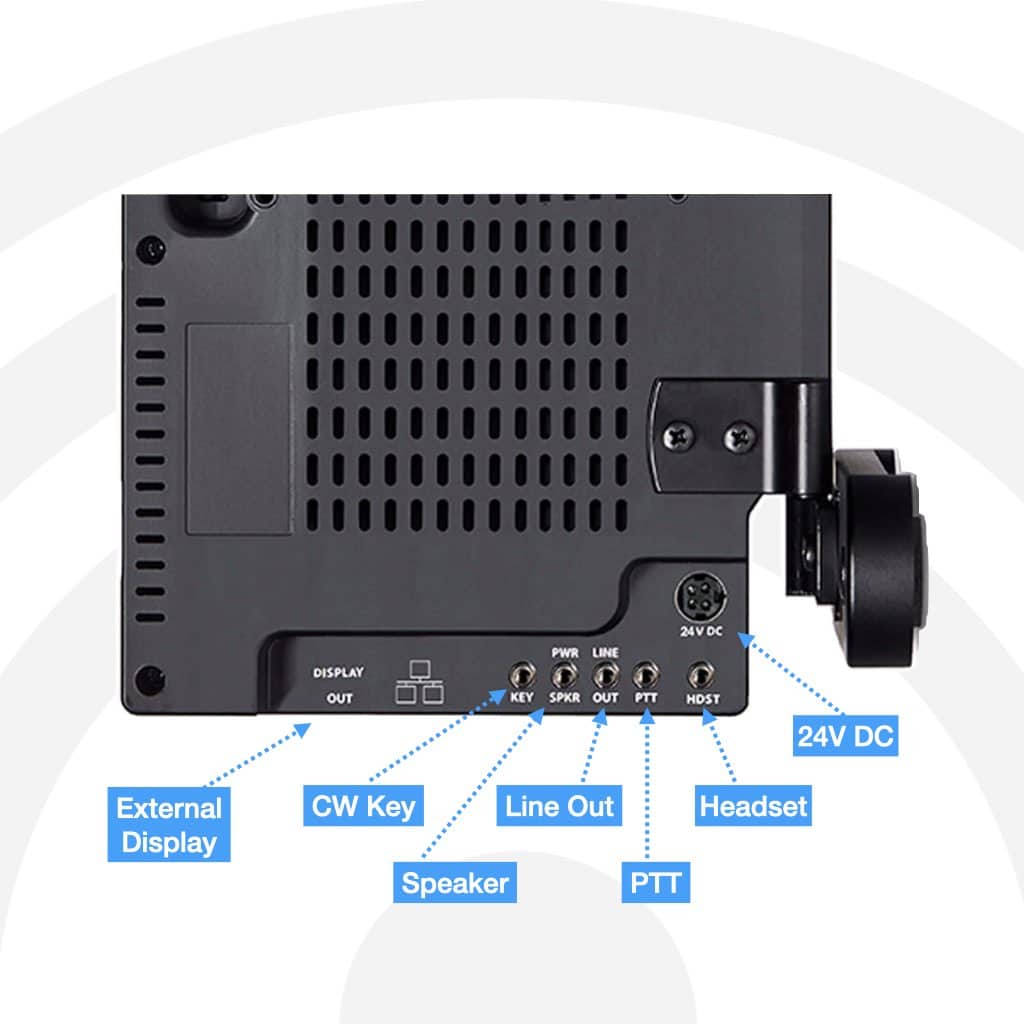

 Input/Output

• Monitor display out
• 1920 x 1200 WUXGA Display
• RJ45- Ethernet 100/1000 MB/sec
• CW Key – ⅛” TRS
• Powered Speakers – ⅛” TRS 3 watts
• Line Out – ⅛” TRS
• Push to talk (PTT) – ⅛” TS
• Microphone / Headphone – ⅛” CTIA TRRS 16 or 32 ohms
• 24V DC 4 Pin D – PD-40V connector

Communications Interfaces

• Wi-Fi:  WiFi 6 @ 2.4 / 5 Ghz
• Ethernet: 100/1000 Mbps

 Mechanical

• Without Feet:
  Height: 17.1cm ( 6.75″)
  Width: 35.6cm (14″)
  Depth: 4.5cm (1.75″)
• Weight: Approximately 4 lbs. (1.8 kgs)

 Electrical

• Power: 24 VDC
• Standard wall-mount AC adapter
• Optional drop in 15V 6900mAh battery – battery charges while installed in Maestro

Included in the box

• Maestro C
• Quick start guide
• AC power supply
• LAN cable
• Fixed mounting feet

Flexradio Maestro Options

• Tilt hinge feet (constant torque)
• Plastic dust cover
• RadioSport RS55SL Super-Light headset
• RadioSport RS60CF-10A Boom-Mic Headset  (needs CS6-TRRS cable below)
• Radiosport CS6-TRRS Cable for RS60CF headset
• Optional Lithium-ion battery
• Standard wall-mount AC adapter

Flexradio Maestro Documents

• Quick Start Guide
• User Guide
• Full Specifications
