Product Description

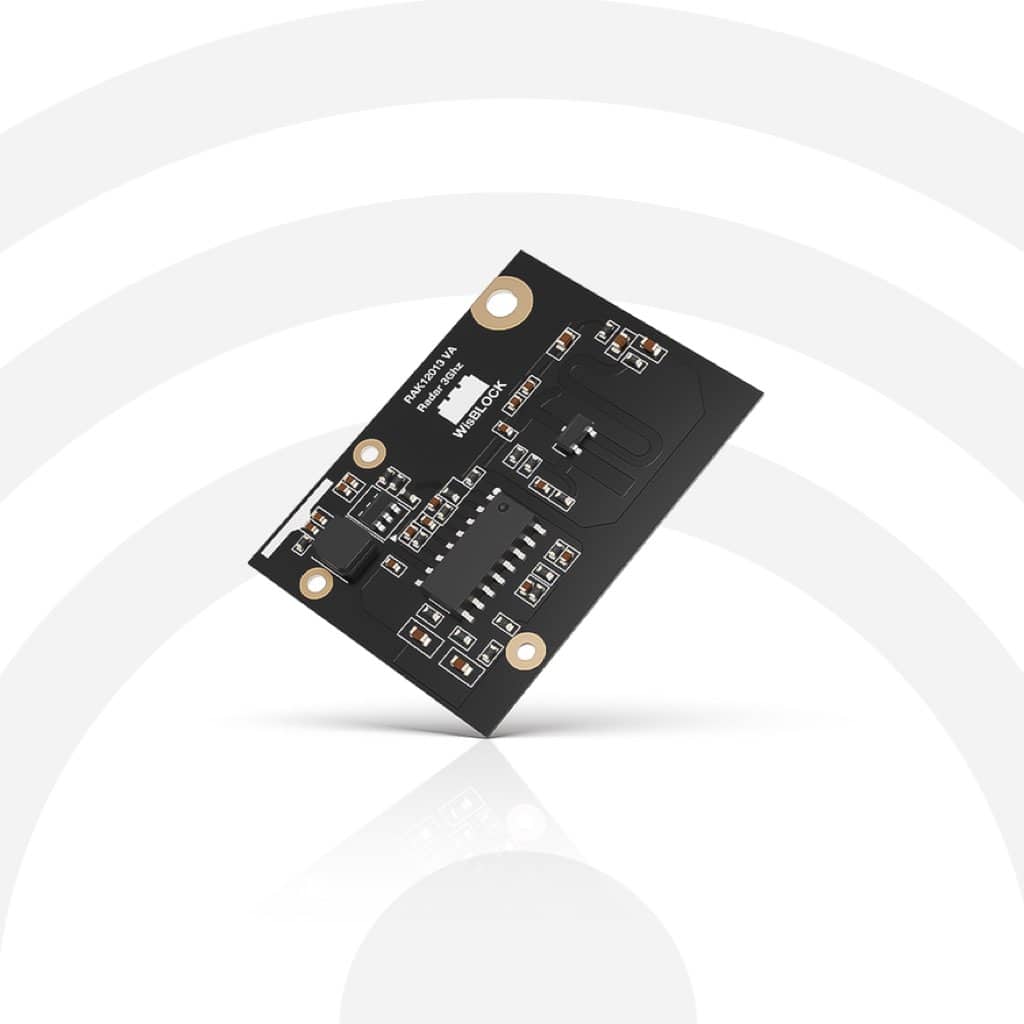

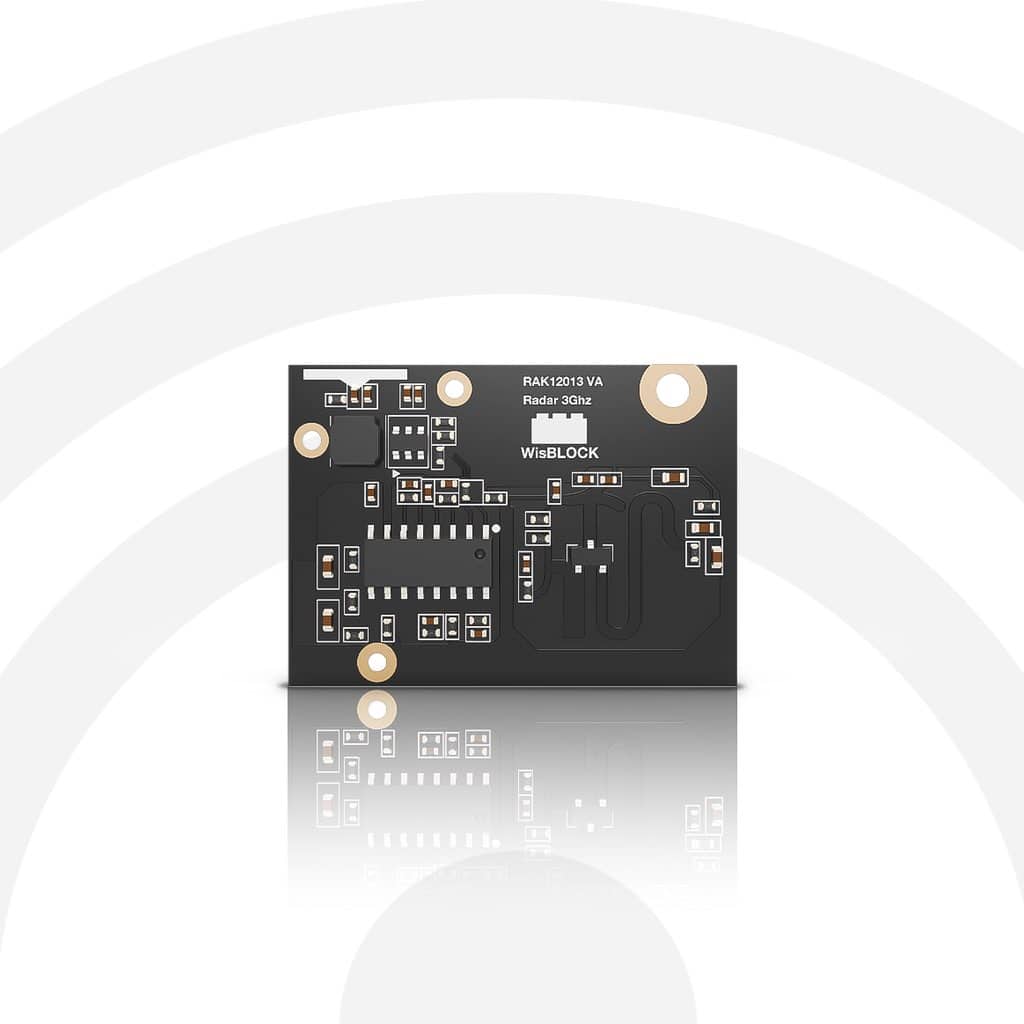

RAK12013 Radar module is a motion detection sensor based on RCWL-9196. This motion detection sensor can detect humans and pets in the sensing range of 5-7m. It can be used as security system to detect intruders or for light automation.

Use it to build a motion sensor for a security system, for lighting automation and for your Smart Home and Smart Office projects.

Features

• Motion detection module
• Detection Distance: 5-7m
• Trigger Way: repeat trigger
• 3.3V Power supply
• Size: 25mm x 35mm
