Product Description

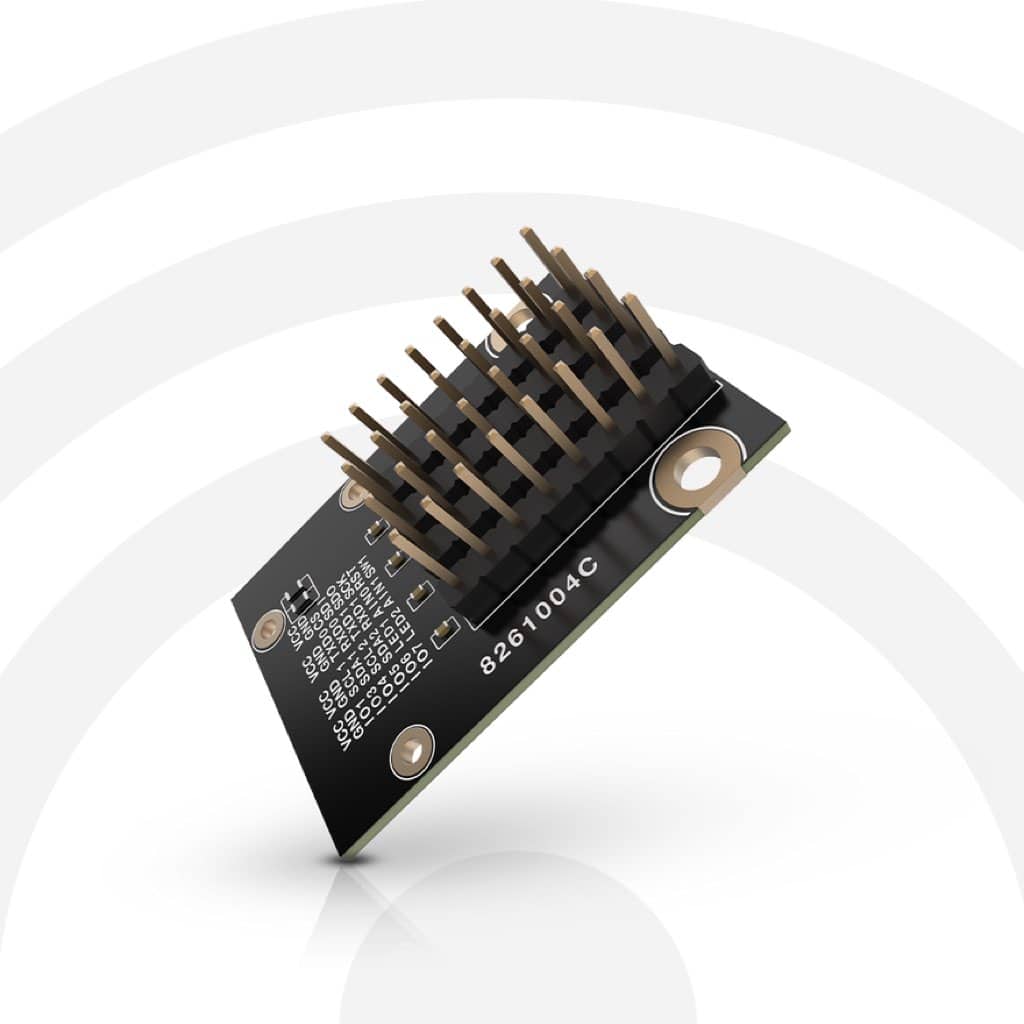

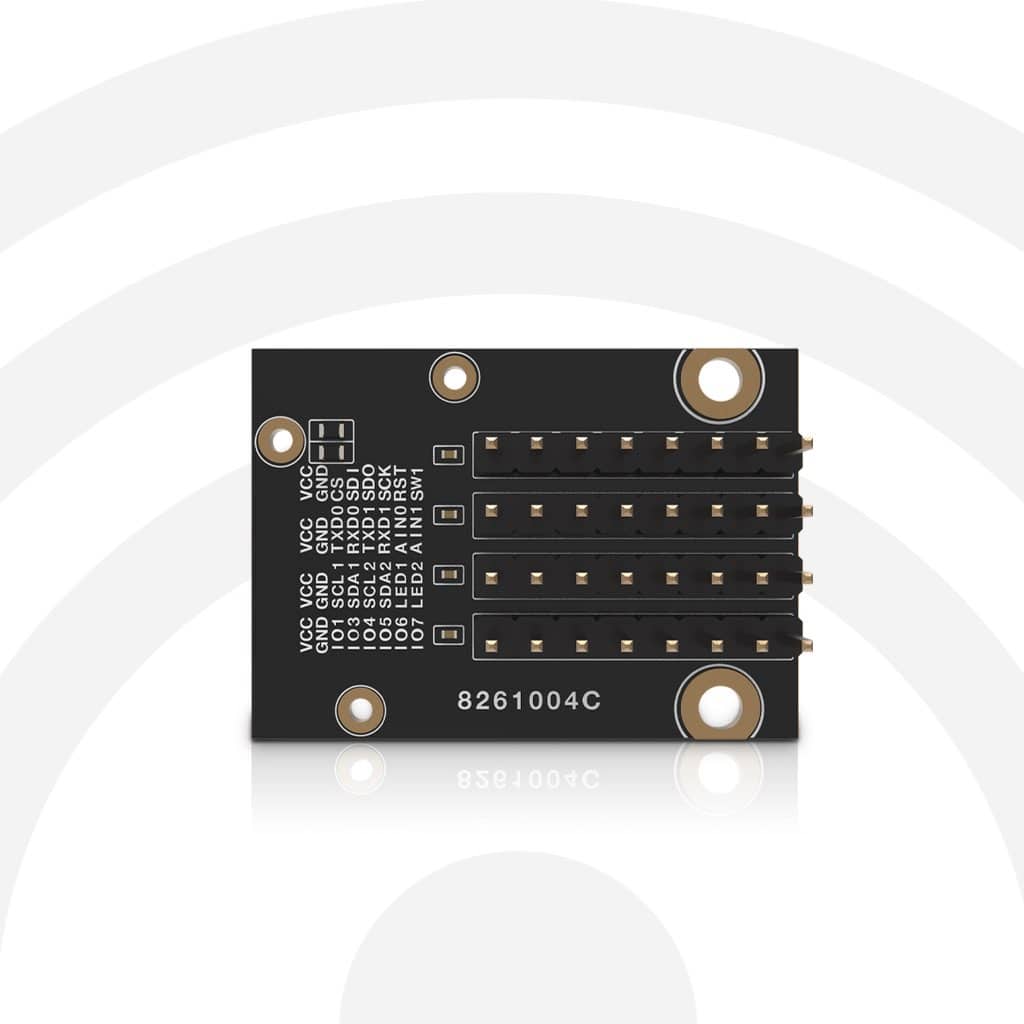

RAK13002 is a WisBlock IO adapter module that allows you to access all WisBlock Core IO pins to four 8 pin headers with standard 2.54mm pitch. This will allow you to connect more external peripherals to your IoT project.

Product Features

• Supports two I2C interfaces
• Supports two UART interfaces
• Supports one SPI interface
• Supports up to 6 GPIOs
• Supports 2 ADC interfaces
• 3.3V power supply interfaces
• Module size: 25X35mm

Documentation

• RAK13002 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository(opens new window)
• RAK13002 3D Model(opens new window)
• 40-Pin Male Connector 3D File(opens new window)
• WisBlock Sensor Tutorial

Examples:

For All WisBlock Core Modules:

• Sample Code: WisBlock IO Module
